一、 引导语

上一篇，我们介绍了如何使用nginx反向代理MinIO，本篇介绍如何使用Traefik代理MinIO。Traefik是出色的边缘路由器 ，具体参考Traefik简介 和 配置介绍

二、使用Traefik反向代理MinIO

（一）、创建docker证书

参考上一篇的介绍

（二）、MinIO容器配置

docker-compose.yml文件

  • 为了让traefik能够发现MinIO服务集群，需要为每个节点进行labels配置，设置"traefik.enable=true"

  • 需要设置entrypoint，让请求从traefik的哪个端点进来

"traefik.http.routers.<service_name>.entrypoints=<entryPoint_name>"
  • 需要设置服务的名称
"traefik.http.routers.<service_name>.service=<service_name>"
  • 需要设置负载均衡的端口号
"traefik.http.services.<service_name>.loadbalancer.server.port=<service_listen_port>"

version: '3.7'

# Settings and configurations that are common for all containers
x-minio-common: &minio-common
  image: minio/minio:$MINIO_VERSION
  command: server --address "0.0.0.0:9000" --console-address "0.0.0.0:9001" http://minio{1...4}/data{1...2}
  restart: always
  expose:
    - "9000"
    - "9001"
  environment:
    TZ: UTC
    MINIO_ROOT_USER: $MINIO_ROOT_USER
    MINIO_ROOT_PASSWORD: $MINIO_ROOT_PASSWORD
  extra_hosts:
    - $DOCKER_DOMAIN_HOST_NAME:$DOCKER_DOMAIN_HOST_IP
  networks:
    - minio-net
  healthcheck:
    test: ["CMD", "curl", "-f", "http://localhost:9000/minio/health/live"]
    interval: 30s
    timeout: 20s
    retries: 3

# starts 4 docker containers running minio server instances.
# using nginx reverse proxy, load balancing, you can access
# it through port 9000.
services:
  minio1:
    << : *minio-common
    hostname: minio1
    volumes:
      - data1-1:/data1
      - data1-2:/data2
    labels:
      - "traefik.enable=true"
      - traefik.http.routers.minio1.rule=Host(`$DOCKER_DOMAIN_HOST_NAME`)
      - "traefik.http.routers.minio1.entrypoints=mio-api"
      - "traefik.http.routers.minio1.service=minio1"
      - "traefik.http.services.minio1.loadbalancer.server.port=9000"

  minio2:
    << : *minio-common
    hostname: minio2
    volumes:
      - data2-1:/data1
      - data2-2:/data2
    labels:
      - "traefik.enable=true"
      - traefik.http.routers.minio2.rule=Host(`$DOCKER_DOMAIN_HOST_NAME`)
      - "traefik.http.routers.minio2.entrypoints=mio-api"
      - "traefik.http.routers.minio2.service=minio2"
      - "traefik.http.services.minio2.loadbalancer.server.port=9000"

  minio3:
    << : *minio-common
    hostname: minio3
    volumes:
      - data3-1:/data1
      - data3-2:/data2
    labels:
      - "traefik.enable=true"
      - traefik.http.routers.minio3.rule=Host(`$DOCKER_DOMAIN_HOST_NAME`)
      - "traefik.http.routers.minio3.entrypoints=mio-console"
      - "traefik.http.routers.minio3.service=minio3"
      - "traefik.http.services.minio3.loadbalancer.server.port=9001"

  minio4:
    << : *minio-common
    hostname: minio4
    volumes:
      - data4-1:/data1
      - data4-2:/data2
    labels:
      - "traefik.enable=true"
      - traefik.http.routers.minio4.rule=Host(`$DOCKER_DOMAIN_HOST_NAME`)
      - "traefik.http.routers.minio4.entrypoints=mio-console"
      - "traefik.http.routers.minio4.service=minio4"
      - "traefik.http.services.minio4.loadbalancer.server.port=9001"

## By default this config uses default local driver,
## For custom volumes replace with volume driver configuration.
volumes:
  data1-1:
    driver_opts:
      type: ext4
      o: bind
      device: /home/ws/docker/minio/datas/data1-1
  data1-2:
    driver_opts:
      type: ext4
      o: bind
      device: /home/ws/docker/minio/datas/data1-2
  data2-1:
    driver_opts:
      type: ext4
      o: bind
      device: /home/ws/docker/minio/datas/data2-1
  data2-2:
    driver_opts:
      type: ext4
      o: bind
      device: /home/ws/docker/minio/datas/data2-2
  data3-1:
    driver_opts:
      type: ext4
      o: bind
      device: /home/ws/docker/minio/datas/data3-1
  data3-2:
    driver_opts:
      type: ext4
      o: bind
      device: /home/ws/docker/minio/datas/data3-2
  data4-1:
    driver_opts:
      type: ext4
      o: bind
      device: /home/ws/docker/minio/datas/data4-1
  data4-2:
    driver_opts:
      type: ext4
      o: bind
      device: /home/ws/docker/minio/datas/data4-2

networks:
  minio-net:
    name: minionet
    driver: bridge
    ipam:
      driver: default
      config:
        - subnet: 172.30.6.0/24
          gateway: 172.30.6.1

.env文件

DOCKER_DOMAIN_HOST_NAME=docker.homeserver.net
DOCKER_DOMAIN_HOST_IP=192.168.3.26

TRAEFIK_IMAGE_VERSION=v2.5
#MINIO_VERSION=RELEASE.2021-12-10T23-03-39Z
#MINIO_VERSION=RELEASE.2021-12-20T22-07-16Z
MINIO_VERSION=latest
MINIO_ROOT_USER=AKIAIOSFODNN7EXAPPLE
MINIO_ROOT_PASSWORD=wJalrXUtnFEMIK7MDENGbPxRfiCYEXAPPLEKEY

（三）、配置Traefik路由

1. 编写traefik.yml配置文件

# mkdir -p /home/ws/docker/traefik/conf /home/ws/docker/traefik/conf/dynamic
# cd /home/ws/docker/traefik/conf
# vim traefik.yml

# log configuration
log:
  filePath: "/traefik/logs/mainLog/traefik.log"
  format: json
  level: DEBUG
accessLog:
  filePath: "/traefik/logs/accessLog/access.log"
  format: json
  bufferingSize: 100
  fields:
    names:
      StartUTC: drop

# global transportation configuration
serversTransport:
  insecureSkipVerify: true

# entryPoints configuration
entryPoints:
  # secure listen port
  websecure:
    address: ":443"
  # minio api listen port
  mio-api:
    address: ":9000"
  # minio console listen port
  mio-console:
    address: ":9001"

# providers configuration
providers:
  docker:
    exposedByDefault: false
  file:
    directory: /traefik/conf/dynamic
    watch: true

# api configuration
api:
  insecure: true
  dashboard: true

2. docker-compose.yml文件

# cd /home/ws/docker/traefik
# vim docker-compose.yml

version: '3.7'

x-dashboard-common: &dashboard-common
  image: traefik:$TRAEFIK_IMAGE_VERSION
  restart: always
  extra_hosts:
    - $DOCKER_DOMAIN_HOST_NAME:$DOCKER_DOMAIN_HOST_IP
  environment:
    TZ: $CONTAINER_TIMEZONE
  networks:
    - traefik-net
    - minio-net

services:
  # traefik as a reverse proxy
  dashboard:
    << : *dashboard-common
    hostname: dashboard
    container_name: traefik-dashboard
    volumes:
      - "/home/ws/config/ssl/docker/ca.pem:/traefik/certs/CAs/docker-ca.crt"
      - "/home/ws/config/ssl/docker/docker-cert.pem:/traefik/certs/public.crt"
      - "/home/ws/config/ssl/docker/docker-key.pem:/traefik/certs/private.key"
      - /var/run/docker.sock:/var/run/docker.sock
      - ./conf/traefik/traefik.yml:/etc/traefik/traefik.yml
      - ./conf/traefik/dynamic:/traefik/conf/dynamic
      - ./logs/traefik/mainLog:/traefik/logs/mainLog
      - ./logs/traefik/accessLog:/traefik/logs/accessLog
    ports:
      - $NGINX_PORT_MINIO_API:9000
      - $NGINX_PORT_MINIO_CONSOLE:9001
      - $NGINX_PORT_TRAEFIK_DASHBOARD:8080
    labels:
      - "traefik.enable=false"

networks:
  minio-net:
    name: minionet
    external: true
  traefik-net:
    name: traefiknet
    driver: bridge
    ipam:
      driver: default
      config:
        - subnet: 172.30.11.0/24
          gateway: 172.30.11.1

3. .env文件

DOCKER_DOMAIN_HOST_NAME=docker.homeserver.net
DOCKER_DOMAIN_HOST_IP=192.168.3.26
CONTAINER_TIMEZONE=UTC

# Container versions
TRAEFIK_IMAGE_VERSION=v2.5
TRAEFIK_INFLUXDB_IMAGE_VERSION=2.1.1-alpine
TRAEFIK_GRAFANA_IMAGE_VERSION=latest
TRAEFIK_NGINX_IMAGE_VERSION=1.20.2-alpine

# Nginx ports configuration
NGINX_PORT_MINIO_API=49000
NGINX_PORT_MINIO_CONSOLE=49001
NGINX_PORT_TRAEFIK_DASHBOARD=49002

（四）、开放端口

# firewall-cmd --zone=public --add-port=49000/tcp --permanent
# firewall-cmd --zone=public --add-port=49001/tcp --permanent
# firewall-cmd --zone=public --add-port=49002/tcp --permanent
# firewall-cmd --reload
# firewall-cmd --list-all

（五）、浏览器访问

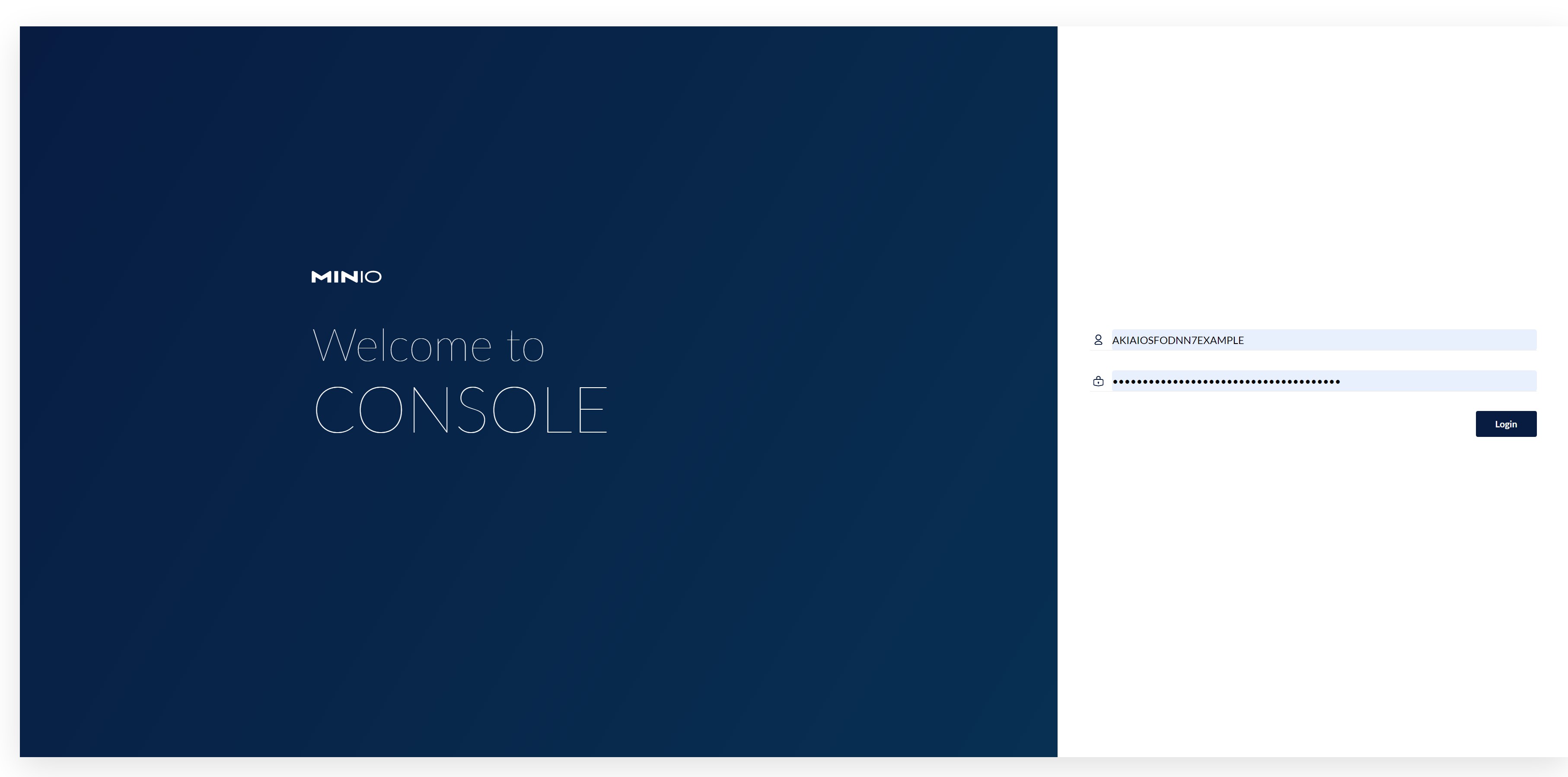

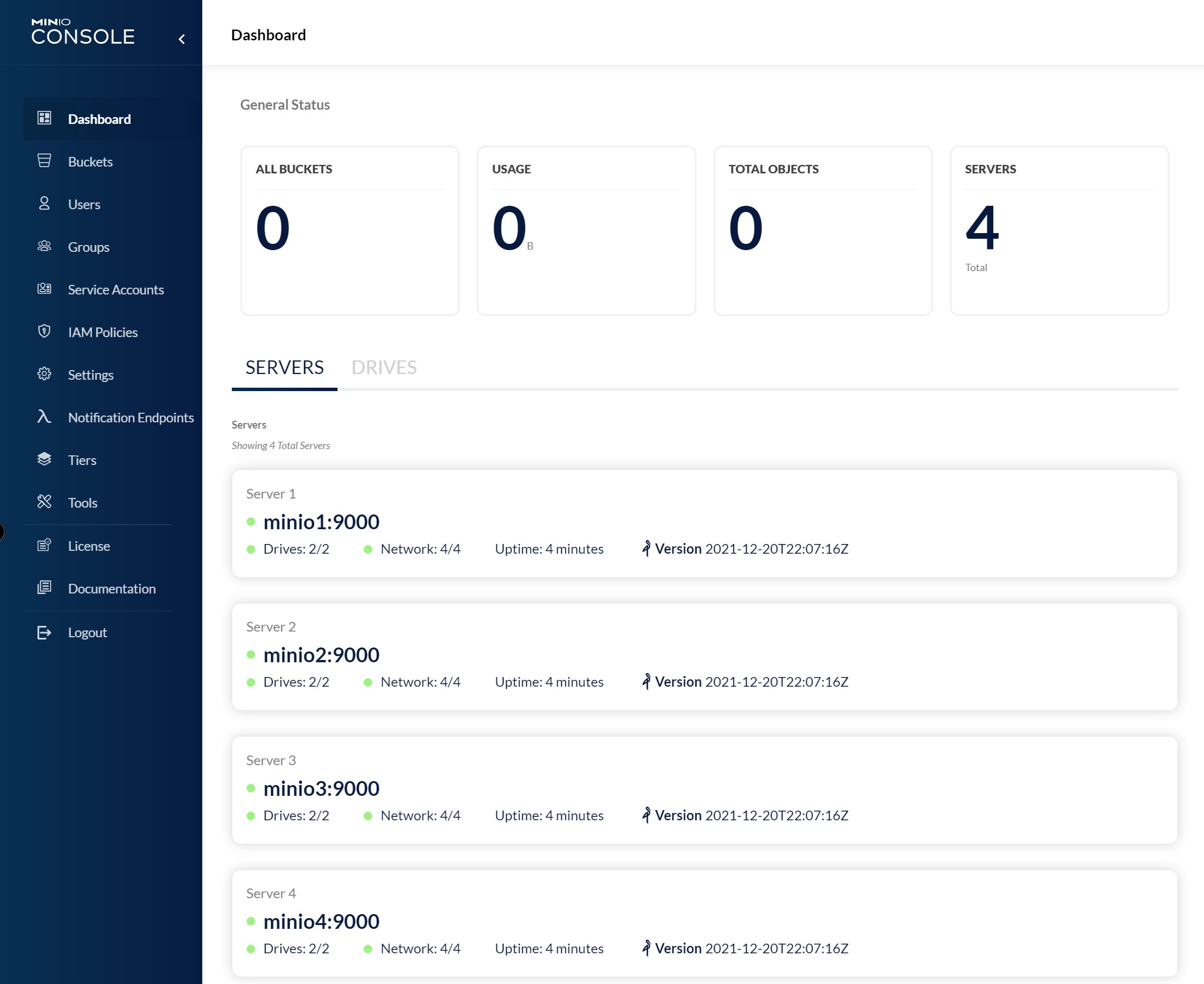

MinIO-Console


http://docker.homeserver.net:49001

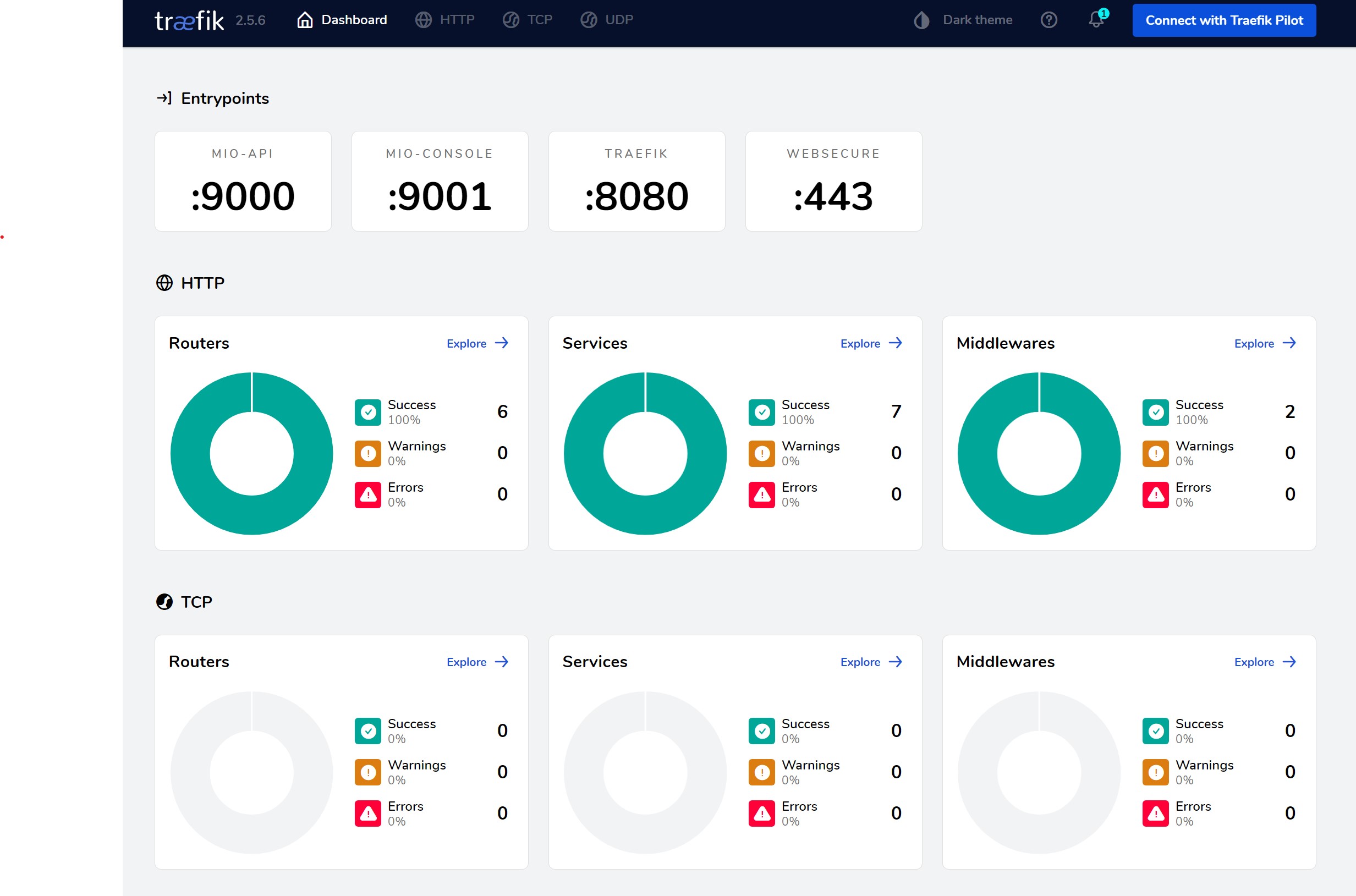

Traefik-Dashboard


http://docker.homeserver.net:49002
